The aluminum alloy metal bridge is formed by aluminum alloy extrusion. It has the characteristics of high dimensional accuracy, good strength, beautiful appearance, light weight and high bearing capacity. The surface of aluminum alloy metal bridge is sandblasted and oxidized to form natural antirust agent. Thin film, which has a great impact on the atmosphere and chemical media. The aluminum alloy metal bridge has strong corrosion resistance, simple structure, novel style, large load, light weight, corrosion resistance, long service life, and convenient installation. It is suitable for general situation areas. In haze, high humidity and corrosive coastal areas, it can show the unique corrosion resistance of the aluminum alloy bridge.

铝合金金属桥架采用铝合金挤压成型，尺寸精度高，强度好，外形美观，重量轻，承载能力强。表面经过喷砂和氧化处理后形成天然的氧化物保护膜，该保护膜对大气和化学介质具有很强的腐蚀能力。桥架在现代工业，现代国防和现代高科技中具有重要的实用价值。铝合金桥系统的设计一定要确保桥架能够满足项目中要铺设的电缆总数。并留有余地。估算电缆的重量时，一定要正确选择负载水平并考虑公差公差。用于施工和维护的临时额外集中载荷或一定要考虑的其他特殊载荷。

Aluminum alloy metal bridge adopts aluminum alloy extrusion molding, with high dimensional accuracy, good strength, beautiful appearance, light weight and strong bearing capacity. After sand blasting and oxidation treatment, the surface forms a natural oxide protective film, which has a strong corrosion ability to atmospheric and chemical media. Bridge has important practical value in modern industry, modern national defense and modern high-tech. The design of aluminum alloy bridge system must ensure that the bridge can meet the total number of cables to be laid in the project. And leave room. When estimating the weight of the cable, it is necessary to correctly select the load level and consider the tolerance tolerance. Temporary additional concentrated load for construction and maintenance or other special loads that must be considered.

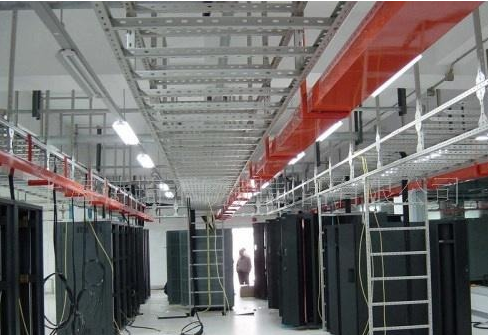

铝合金金属桥架

Aluminum alloy metal bridge

系统设计应标明铝合金桥架的行进方向，货盘或梯子的规格，层数，各种曲线的位置，加宽，升高和扩展板的设置点以及设置。衣架以及相关尺寸。系统轮廓应标明铝合金桥梁的层间间距，吊架的层间标高，行进方向的标高变化以及吊架的安装方法等。应当编制铝合金桥架系统所需的托盘，梯子，弯头，托架和吊架以及主要附件的规格和数量的详细清单，并指出对负载水平和处理的技术要求。表面。在设计系统时，应考虑标准系列的产品，并应为项目所需的非标准零件提供详细的图纸和技术说明。

The system design shall indicate the travel direction of the aluminum alloy bridge, the specification of the pallet or ladder, the number of layers, the position of various curves, the setting points and settings of widening, lifting and expansion plates. Clothes hangers and related dimensions. The system outline shall indicate the interlayer spacing of the aluminum alloy bridge, the interlayer elevation of the hanger, the elevation change in the direction of travel, and the installation method of the hanger. A detailed list of specifications and quantities of trays, ladders, elbows, brackets and hangers as well as main accessories required for the aluminum alloy bridge system shall be prepared, and the technical requirements for load level and handling shall be pointed out. Surface. When designing the system, priority should be given to standard series of products, and detailed drawings and technical descriptions should be provided for non-standard parts required by the project.

铝合金金属桥架的防腐性能非常杰出。为了获得更好的防腐性能，通常在该产品的生产过程中进行一些相关的镀锌处理，因为经过这种处理后，即使在某些相对劣势境况中也可以保证不会造成任何腐蚀。对本产品使用的影响或损害。包括一些常用方法在内，可能会有一些外部处理方法和一些废物处理能力。

The aluminum alloy metal bridge has excellent anti-corrosion performance. In order to obtain better corrosion resistance, some relevant galvanizing treatment is usually carried out during the production process of the product, because after such treatment, even in some relatively inferior situations, it can be guaranteed that no corrosion will occur. Influence or damage to the use of this product. Including some common methods, there may be some external treatment methods and some waste treatment capacity.

铝合金金属桥架防腐性能和一些相关方法更合适，也可以使用一些更好的方法来代替。实际使用中可以保证亮度实际操作中有三种不同的应用要求，包括一些相对苛刻的境况和一些中等的境况。

The anti-corrosion performance of aluminum alloy metal bridge and some related methods are more suitable, and some better methods can also be used to replace it. The brightness can be guaranteed in actual use. There are three different application requirements in actual operation, including some relatively harsh conditions and some moderate conditions.
